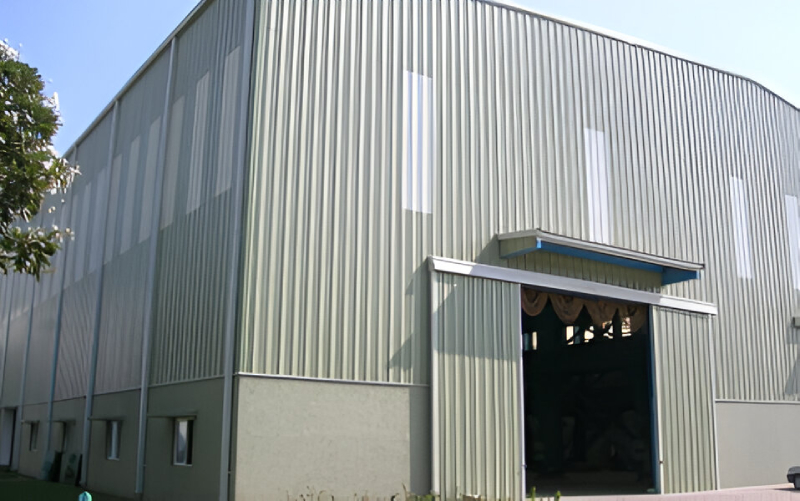

Sliding Doors
Sliding doors are used in hangars, warehouses, etc., where a larger opening into the building is required. They are not hinged but rather rollers are provided on top of the doors and this roller is placed on brackets allowing a sliding movement.
-
Aluminium Windows
These windows are placed on the walls of a building and are double slide. They are moved by a sliding action controlled by guideways and the jab fins. Multiple windows can be formed by joining the jamb fins together. Standard size is 1m x 1m
-

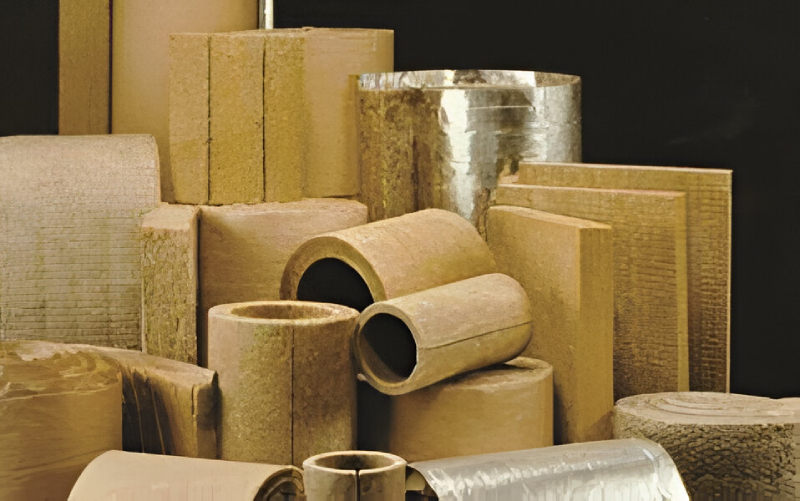

Insulation
These are the panels made from high pressure injected polyurethane foam and are meant for insulating a building. They are CFC-free, can withstand intense heat, contain extreme low temperatures. The panels provide excellent adhesion to the panel's sheeting.
-

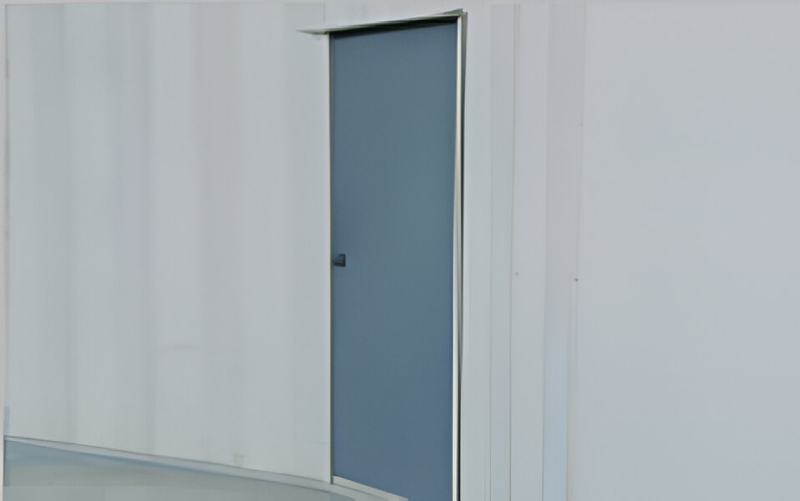

Walking Doors (Single or Double)
915mm x 1830mm wide x 2134mm high made of 20 gauge electro galvanized steel with a core of polyurethane insulation. Door fixture is provided.
-

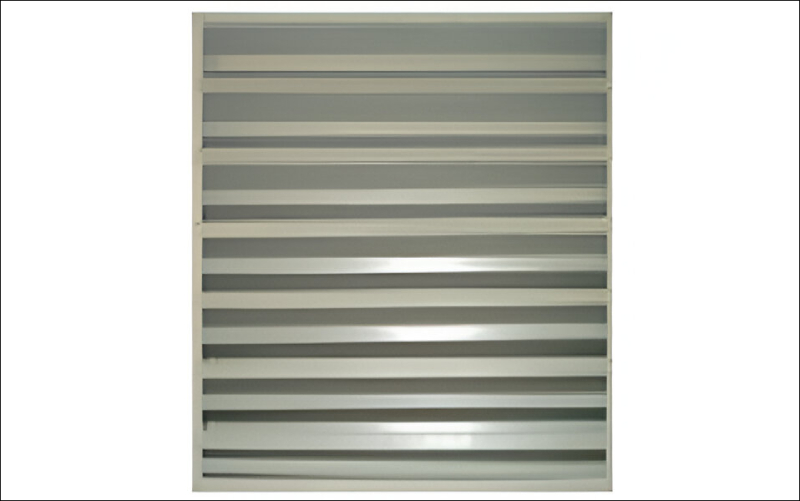

Louvers
A louver is a frame containing adjustable overlapping blades which allow air flow and also block sunlight entry. The standard size available is 1m x 1m, which also incorporates insect screen, hand crank and blade adjustment lever.
-
Fasteners
Fasteners are of self-drilling screws No. 14, made of steel wire and EPDM bonded washers. The fasteners are either plain carbon or stainless steel type.
-

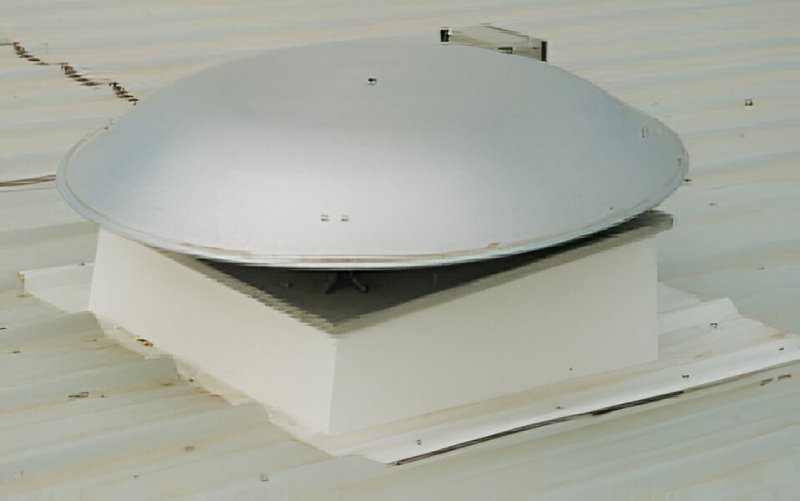

Power Ventilators
Swathi Build Tech 'C' whirlwind low silhouette extract Ventilator with spun aluminum non-return shutter and one piece base and throat. Provides ventilation when there is no wind and is placed on top of the roof panels.
-

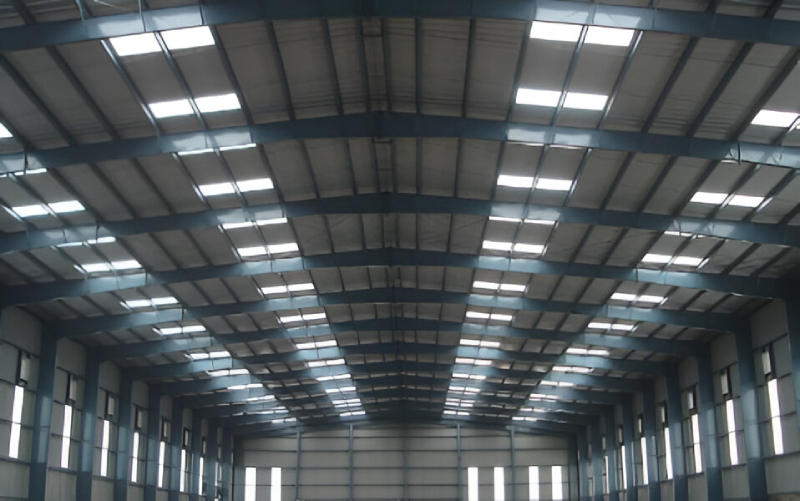

Skylights and Wall Lights
Made of translucent GRP to match Swathi Build Tech rib and wall panels, with an estimated light transmitting capacity of 60%.
-

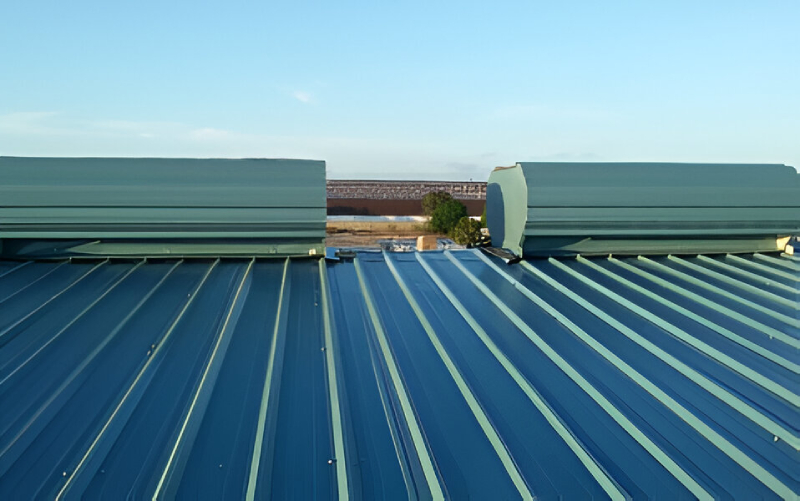

Ridge Ventilators
This is a gravity-type Ventilator which is provided with a bird screen and mechanical controlled damper. Allows natural ventilation of the building.
-

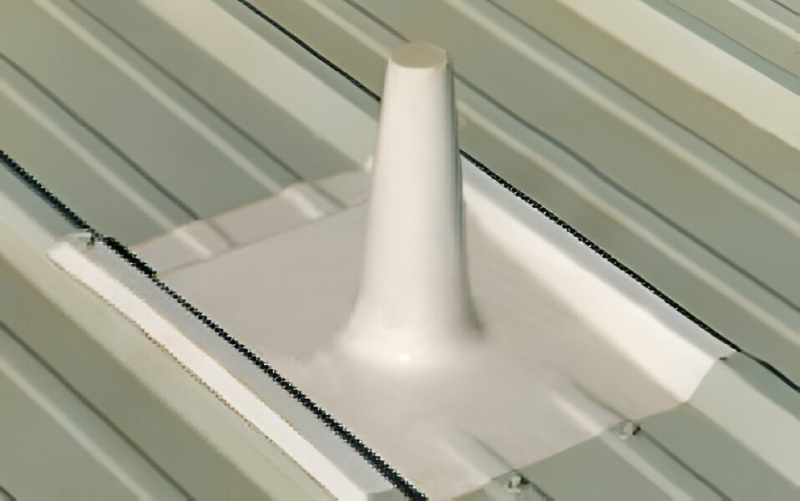

Roof Jacks
These are enclosures for pipes and stacks projecting from the roof. They allow for safe working on the roof.
-

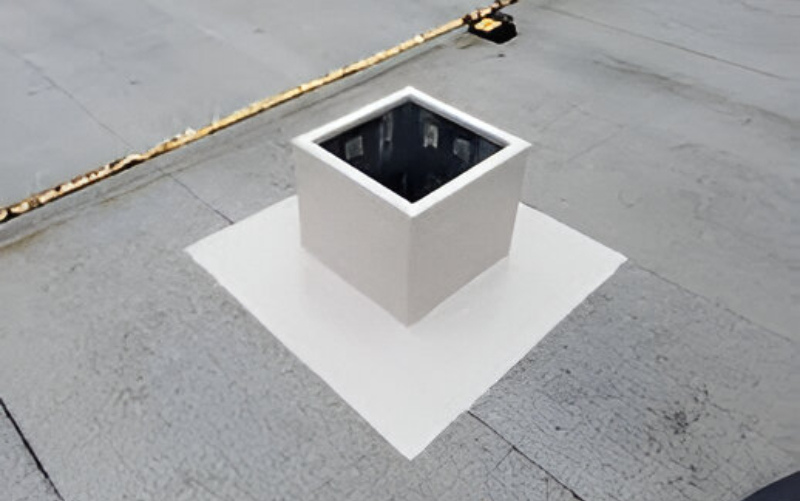

Roof Curbs
These are enclosures for ducts or other roof projections made up of reinforced plastic fitting Swathi Build Tech rib roof panels.
-

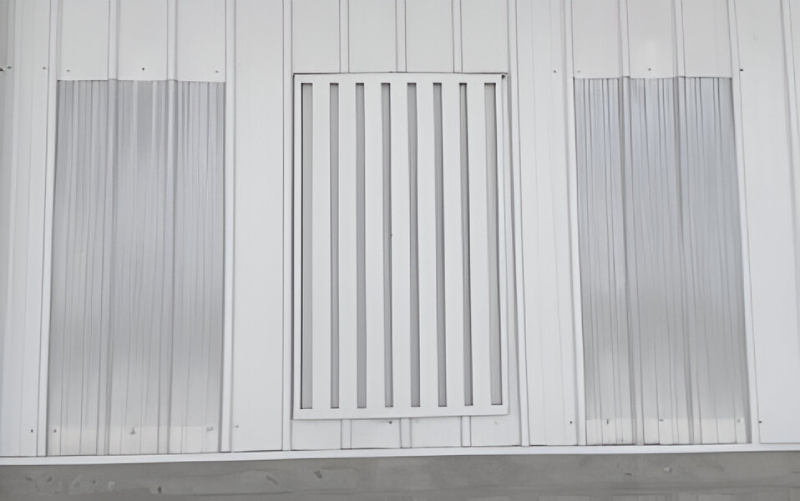

Sand Trap Louvers
This Louver consists of different form of flashings arrangements in a predetermined manner in order to create a sand trap. The dual advantage of the sand trap louver is not only to help with natural ventilation but also to act as sand trap.
-

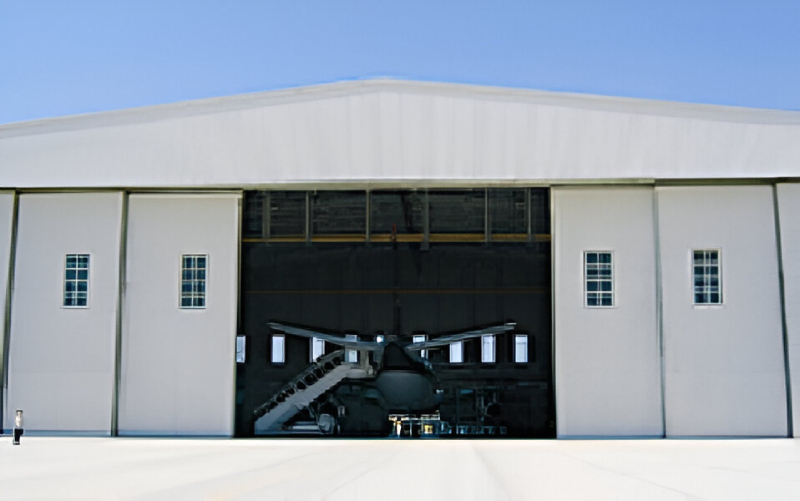

Aircraft Hangar Doors
Swathi Build Tech provides solutions for special applications such as aircraft hangars, customized hangar doors and framing, customized support systems for special equipment and maintenance cranes.
-

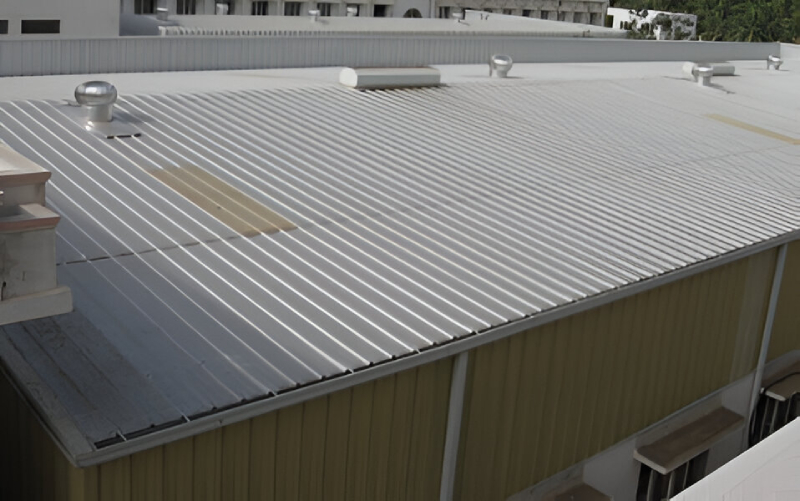

Turbovents
Swathi Build Tech 'C' whirlwind low silhouette extract Ventilator with spun aluminium non-return shutter and one-piece base and throat. Mounted on GRP roof crub moulded to suit Swathi Build Tech roof panels.
